High Speed 4 side moulder for Short pieces

May 08 , 2024

High Speed 4 side moulder for Short pieces

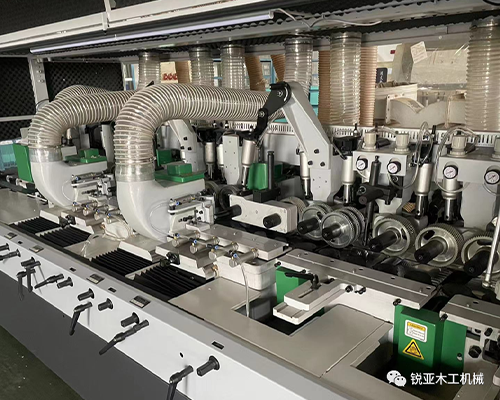

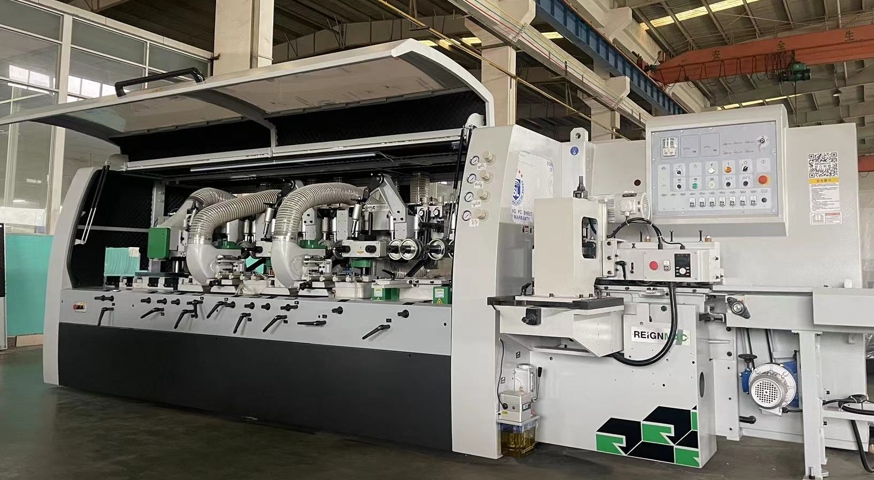

REIGNMAC RMM720H  high speed four side moulder





Excellent properties for REIGNMAC RMM720H short pieces high speed four side moulder

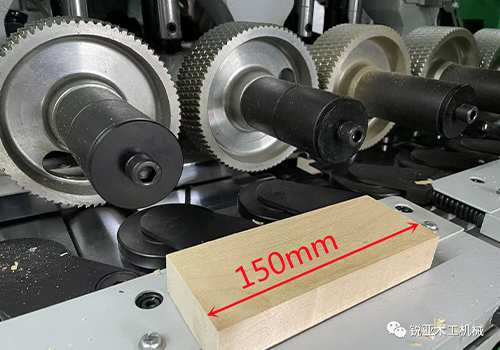

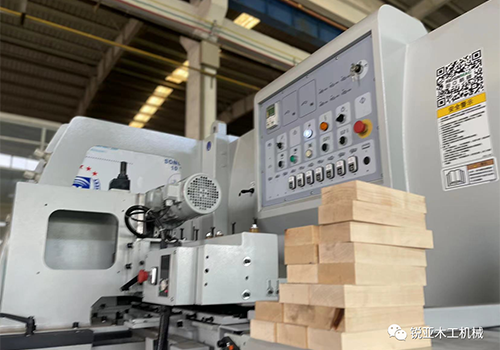

1.Application market: mainly solving the large-scale processing of short specification materials in the production of integrated materials. This model can meet the continuous feeding of materials with a minimum length of 150mm, and the maximum speed can reach 70 meters/minute.



140x140
140x140

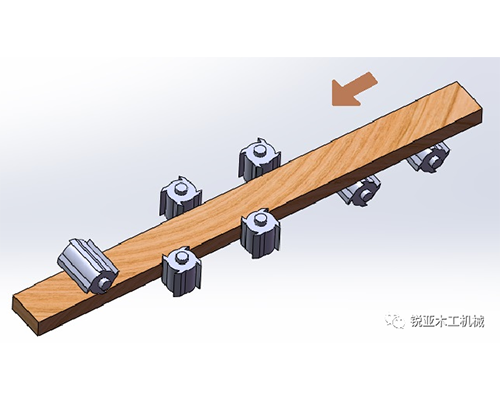

2.Spindle arrangement:B-B-R-L-R-L-T



140x140
140x140





3.Adopting the first two bottom spindle design, making the reference plane smoother and reducing material loss for materials with large deformation.



4.Equipped with two sets of left and right shafts for cutting, for material loss of materials with large deformation.The rotation for 2nd left and right spindle is 8000r/min,make better finish.

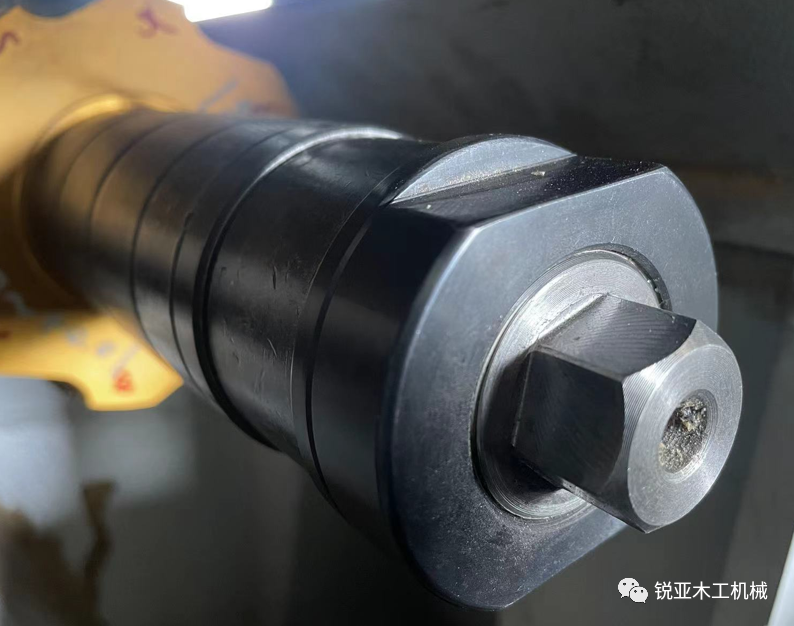

5.The rotation for top spindle is 8000r/min,make better finish.

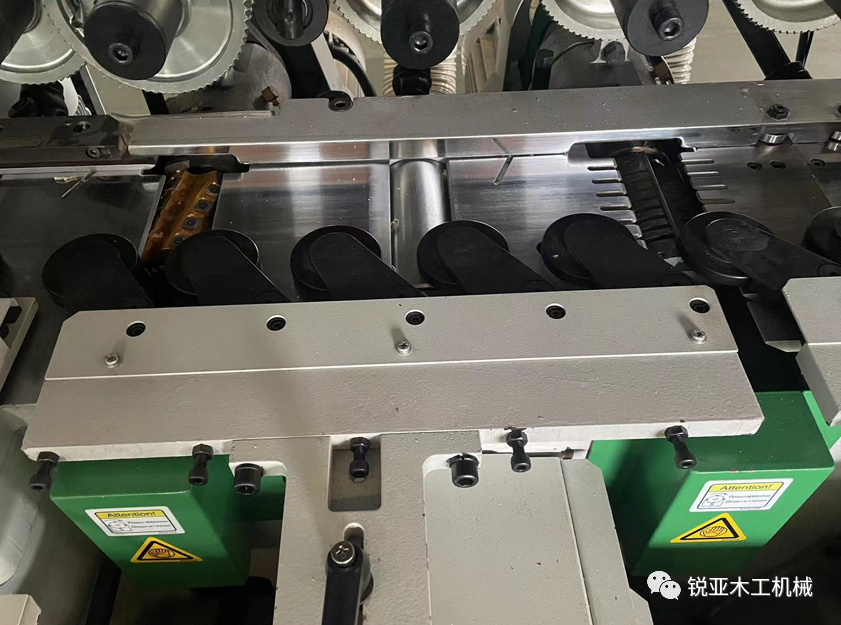

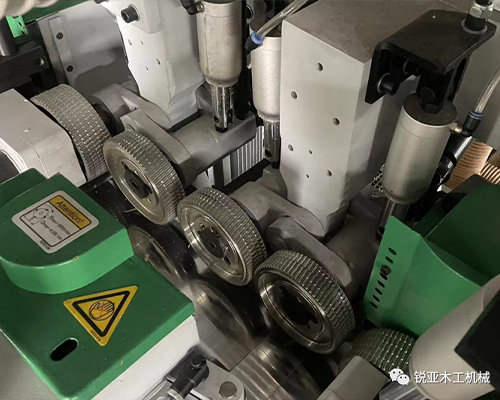

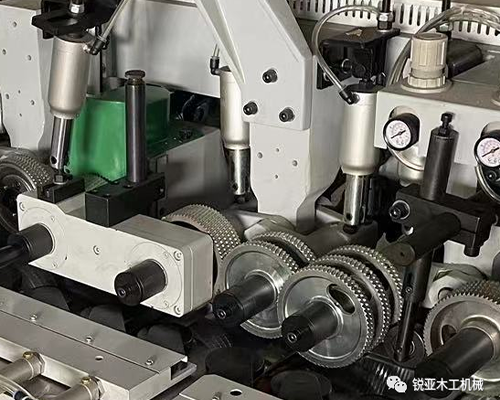

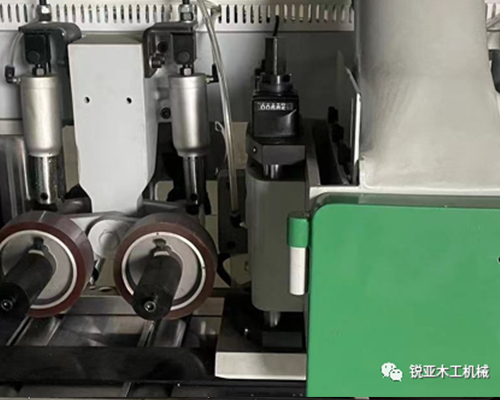

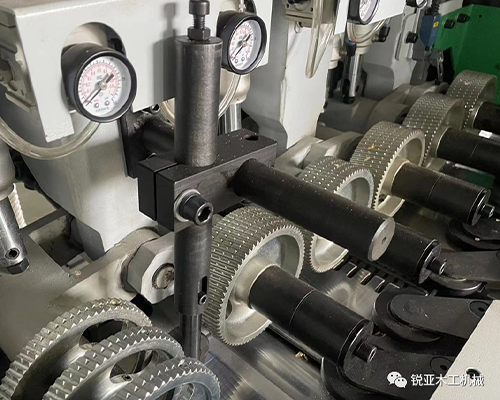

6.Equipped with multiple sets of active compression wheels, as well as a combination structure of plug-in upper compression wheels for short materials, multiple sets of short material boxes, and passive vertical compression wheels, to ensure smooth delivery of wood with a minimum length of 150mm.



140x140
140x140

140x140
140x140
140x140



For more customized solution information of  four side planer and double end tenoner,welcome to contact Reignmac woodworking machinery.
